Gavita Pro 1700e LED Review and Comparison with Cultiuana CT-800
LED grow lights have advanced significantly, matching the intensity and quality of traditional lighting options like HPS and MH.
The best part is that they have become more affordable for small-scale and commercial growers, making them an affordable choice for those with limited budgets.
In the past, high-quality LED lights were out of reach for many due to their high prices. However, recent developments have brought forth powerful yet cost-effective LED options for home growers.
Today, LED grow lights offer a worthwhile investment, delivering performance that rivals commercial lighting while remaining accessible for all growers.
In this comparison, we will explore the Gavita Pro 1700e LED and Cultiuana CT-800 fixtures, providing you with a detailed side-by-side analysis of both options and any other combinations you wish to explore.
1. Gavita Pro 1700e LED and Cultiuana CT-800 Specifications:
|
Brand |
Cultiuana CT-800 |
Gavita Pro 1700e LED |
|
Power |
800W |
645W |
|
Spectrum |
Full-spectrum(4000k+ 660nm reds + 730nm far red) |
Full-spectrum 3000k + 660nm reds |
|
LED Chips
|
JUFEI white2400 pcs + JUFEI 480pcs |
SAMSUNG white 3264pcs+ Osram red 72 pcs |
|
PPF Output |
2240 µmol/s |
1700 µmol/s |
|
PAR Efficiency |
2.8 µmol/j |
2.6 µmol/j |
|
Voltage |
120-277 V |
120-277 V |
|
Configuration |
8 Bar with flat design |
8 bars |
|
Weight |
22 pounds |
28 pounds |
|
Dimensions |
44.8” x 42.5”x2.0” |
44.1" x 43.7" x 2.3" |
|
Limited Coverage Area |
5x5 (1.5 m x 1.5 m) |
4x4 (1.2m x 1.2m) |
|
Dimmable Range |
0-40%-60%-80%-100% |
50%-100% |
|
Dimming Knob
|
Yes |
No, need to purchase additionally at USD 117 |
|
Daisy Chain |
Up to 100 fixtures |
Up to 500-1000 fixtures |
|
Warranty |
5 years |
5 years |
|
Wet Rating |
IP65 |
IP66 |
2. Gavita Pro 1700e LED Yield and Cultiuana CT-800 Yield
We received feedback from an indoor grower who achieved an impressive yield of 2.0 lbs per light using the Gavita Pro 1700e LED, even without the need for CO2 supplementation.
In contrast, multiple growers who utilize the Cultiuana CT-800 have reported even higher yields. They claim to consistently achieve yields ranging from 3.0 to 4.5 lbs per light.
These testimonials demonstrate the remarkable potential of both the Gavita Pro 1700e LED and the Cultiuana CT-800 in maximizing cannabis yields.
3. Gavita Pro 1700e LED and Cultiuana CT-800
PAR Grid Chart at 24”
When both lights are suspended at a height of 24 inches, we can observe the PAR chart provided below for each light.
Gavita demonstrates high light intensity, while Cultiuana also performs impressively in this aspect, with even higher data. Based on the PAR chart data for both lights, we can draw the following conclusion:
Cultiuana offers greater PPFD data, leading to various advantages:
First, during the flowering phase, indoor plants receive increased light, resulting in enhanced yields. Secondly, it enables a reduced harvesting period, saving cultivation time. This empowers growers to cultivate an extra crop within a single year.
Second, when growers use CO2 supplementation for their plants, they need to provide a PPFD (Photosynthetic Photon Flux Density) of more than 1100 μmol/m²/s.
But unfortunately, based on the data we have from the graph, Gavita's 1700e may not give enough PPFD when CO2 is used, which means the plants might not get the ideal light levels for maximum yields.
On the other hand, Cultiuana CT-800 shows 1100 μmol/m²/s higher PPFD values, which is really great for growers who use CO2 supplementation.
So, for growers relying on CO2 supplementation, it's important to consider that Gavita's 1700e may not meet their specific PPFD needs.
Third, another advantage is that CT-800 can be hung higher. This means it can cover a larger area, so with the same cultivation space, one light can take care of more cannabis plants, and this brings better economic benefits.
4. Gavita Pro 1700e LED and Cultiuana CT-800
Spectrum
The graph above shows the spectrum of both Gavita and Cultiuana CT-800 LED grow light. They follow the typical pattern of full-spectrum LEDs with stronger intensity in the blue and red parts of the spectrum.
Each light fixture uses different LED diodes, including a variety of color temperatures for the white light. However, they both maintain a broad full spectrum across the entire PAR range from 400nm to 700nm, with enhanced power in the blue and red regions.
Interestingly, when we look beyond the PAR range, the Cultiuana CT-800 stands out by emitting a stronger amount of infrared radiation.
730nm wavelength light belongs to the far-red light spectrum, and its effects on indoor plants cultivation can be seen in the following aspects:
Flowering regulation: Far-red light at 730nm can help plants adjust their photoperiod, leading to an accelerated transition into the flowering stage. Introducing a moderate amount of 730nm infrared light during specific periods can promote cannabis growth and flowering.
Endogenous hormone balance: The influence of far-red light on plant growth regulators such as auxins and gibberellins help facilitate plant growth and flowering.
Photomorphogenic response: Indoor plants exhibit photomorphogenic responses, where different light wavelengths can stimulate specific growth processes. For instance, 730nm light can reduce the plants' elongation response to light, resulting in a compact structure during indoor cultivation.
It is important to note that relying solely on 730nm light is not sufficient for indoor plants cultivation, as it should be combined with other light wavelengths.
For example, blue light and red light (with bandwidths of 400-500nm and 620-680nm, respectively) play crucial roles in photosynthesis, ensuring normal plant growth.
In summary, 730nm light serves as a supportive factor in indoor plants cultivation, promoting growth and flowering through the regulation of the entire growth cycle and hormone balance.
It should be used in conjunction with other light wavelengths in an indoor spectral adjustment system to achieve an ideal light environment.
5. Gavita Pro 1700e LED and Cultiuana CT-800
Heat Sink
The heat sink designs of Gavita and Cultiuana CT-800 are quite similar. In this aspect, Cultiuana has done just as well as Gavita.
6. Gavita Pro 1700e LED and Cultiuana CT-800
LED Diodes
The Gavita Pro 1700e LED light distributes the white chips in two rows on each bar, totaling 3264 chips.
In contrast, Cultiuana adopts a different approach by allocating the chips in four rows for improved light distribution. The total number of chips for Cultiuana is 2400pcs. For a comprehensive comparison, please refer to the table below, which provides further details:
White LED Chips
|
Brand |
Model |
Number |
Working Power Per LED Chip |
Power |
|
Gavita Pro 1700e LED |
SAMSUNG 301B |
3264pcs |
0.175W |
645W |
|
Cultiuana CT 800 |
JUFEI SMD3030 Sanan chip |
2400pcs |
0.28W |
800W |
RED 660nm Chips
|
Brand |
Model |
Number |
Working Power Per LED Chip |
Power |
|
Gavita Pro 1700e LED |
OSRAM SMD3030 |
72 |
1W |
72W |
|
Cultiuana CT-800W |
JUFEI SMD3030 Sanan chip |
384 |
0.2W |
76.8W |
730nm Far Red
|
Brand |
Model |
Number |
Working Power Per LED Chip |
Power |
|
Gavita Pro 1700e LED |
/ |
/ |
/ |
/ |
|
Cultiuana CT-800W |
JUFEI SMD3030 Sanan chip |
96 |
0.2 |
19.2W |
7. Gavita Pro 1700e LED and Cultiuana CT-800
Design
Gavita features a well-designed 8-Bar configuration, making it an ideal choice for low rooms, vertical racks, or grow tents.
Cultiuana CT-800, on the other hand, incorporates a unique design with 8 conformally-coated PCBs, each backed by LED chips. This design is patented and sets Cultiuana apart. The light bars are arranged in reverse, with all the LED chips positioned at the back of each bar and the aluminum heatsinks located on the front side.
This innovative approach ensures that the lighting does not droop over time, even after years of usage. To gain a better understanding of this design, please refer to the gif image provided below:
8. Gavita Pro 1700e LED and Cultiuana CT-800
Dimmer
To operate the Gavita Pro 1700e LED, you will require a Gavita E-Series LED Adapter for each fixture, which is available at a cost of approximately $117 per adapter.
On the other hand, Cultiuana provides added convenience with an onboard dimmer feature. This allows growers to easily adjust the light intensity from 0 to 100%, catering to the specific stage of growth and the needs of their plants.
7. Gavita Pro 1700e LED and Cultiuana CT-800
Price

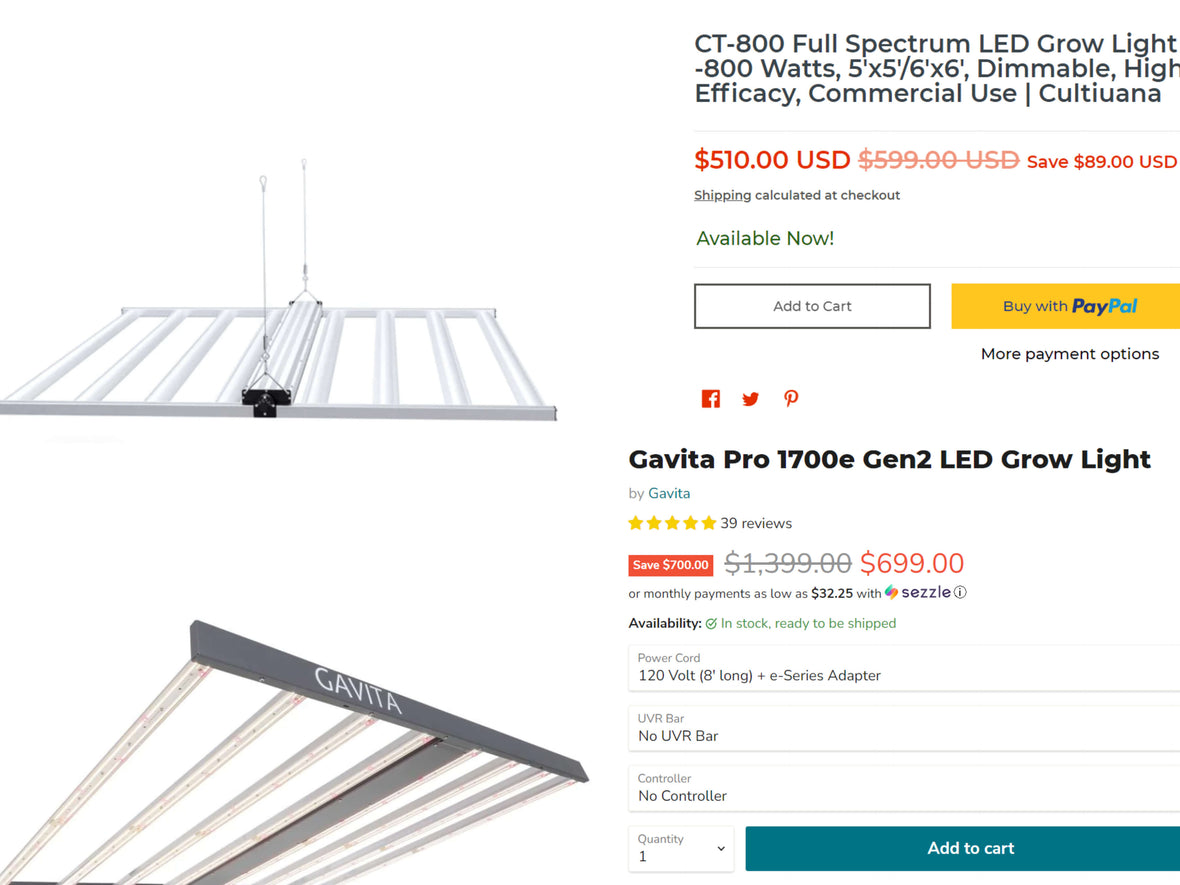

When Gavita initially launched their 645W model, it was priced at over $1000. However, we have observed a recent price drop, with the same wattage now available at around $600+.
On the other hand, the Cultiuana 800W LED grow light is priced at $510, and as an added bonus, we offer a 10% discount for your first purchase.
8. Pros and Cons of Gavita 1700e LED and Cultiuana CT-800
Pros of Gavita Pro 1700e LED Grow Light
Powerful Light Intensity: The Gavita Pro 1700e provides an impressive light intensity of up to 1700 µmol/s, ensuring optimal growth for your plants.
Energy Efficiency: Despite its high intensity, the 1700e is designed to be energy-efficient. It consumes only 645 watts of power, resulting in an impressive efficacy of 2.6 µmol/s per watt.
Versatile 8-Bar Configuration: The 1700e's 8-bar design makes it suitable for various setups, including low rooms, vertical racks, or grow tents. It offers flexibility in accommodating different growing environments.
Daisy Chain Capability: With the ability to daisy chain up to 500-1000 fixtures, the 1700e simplifies the setup and management of multiple lights, providing convenience and scalability for larger cultivation operations.
Pros of Cultiuana CT-800 LED Grow Light
High Quality at Competitive Price: The CT800 offers a combination of high-quality construction and affordability, ensuring you get a reliable and efficient grow light without compromising on your budget.
Perfect Intensity Lighting for 5x5 Grow Area: Designed specifically for a 5x5 grow area, the CT800 provides the ideal intensity of light required for optimal plant growth and maximum yields in this specific space.
Flat Design to Avoid Light Droop: The CT800 features a flat design that prevents light drooping over time. This ensures consistent light distribution and coverage, eliminating any hotspots or uneven lighting patterns.
More LED Chips for Enhanced Light Distribution: With an increased number of LED chips, the CT800 achieves improved light distribution throughout your grow space. This results in better coverage and more even lighting for all your plants.
On-Board Dimmer for Convenient Light Control: The CT800 comes equipped with an on-board dimmer, allowing you to easily adjust the light intensity according to the specific needs of your plants. This provides you with flexibility and precise control over the lighting environment.
Structural Design: The clever structural design significantly reduces the packaging volume of the product. The packaging thickness is about half of most products in the market.
Taking the example of a 40-foot High Cube container, the Cultiuana CT800 can accommodate 800PCS, while other products can typically fit no more than 500PCS. This results in approximately 50% cost savings in transportation.
Cons of Gavita Pro 1700e LED Grow Light
Expensive: Similar to the 1930e, the Gavita Pro 1700e is a high-end LED grow light, and it may not be affordable for all growers.
Limited coverage area: Although Gavita claims a maximum coverage of 5'x5', there is a drop-off in PPFD around the edges of the fixture. So a coverage area of 4'x4' seems more suitable. While the 1700e offers excellent coverage for vertical rack systems, it may not be ideal for wide benches.
50%-100% dimmable range: The 1700e has a dimming function, but it can only be dimmed down to 50% when used with the Gavita Master Controller and E-Series Adapter. This can be a limitation when it comes to accommodating young plants or adjusting the hanging height.
Heavy: Weighing 28 pounds, the 1700e can be quite heavy, which could pose challenges when mounting it in certain grow tents.
Cons of Cultiuana CT800 LED Grow Light
Non-Samsung LED Chips: The CT800 utilizes LED chips from a smaller brand, which may raise concerns for some customers.
However, it's important to note that Cultiuana's LED chips are carefully selected based on their high quality and performance.
These branded chips have undergone rigorous testing and are known to deliver excellent results. By choosing Cultiuana, you can trust in the reliability and efficiency of our LED chips, even if they are not Samsung-branded.
Daisy Chain Limitation to 100 Fixtures: While the CT-800 offers the convenience of daisy chaining, it has a maximum limit of 70 fixtures in the chain.
This may not be suitable for growers with extensive setups or those who require a higher number of interconnected fixtures.
However, for most standard-sized operations, the ability to daisy chain up to 70 fixtures provides ample flexibility and convenience in managing your lighting system.
Conclusion
In general, for indoor growers, both of these lights are equally impressive. However, if you have a limited budget, you may want to consider a cost-effective LED grow light like Cultiuana CT-800 LED. It performs similarly to Gavita in many aspects that are important to most growers.
