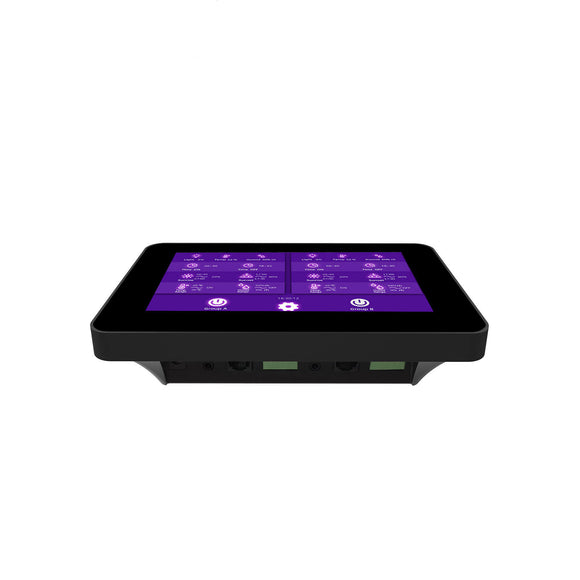

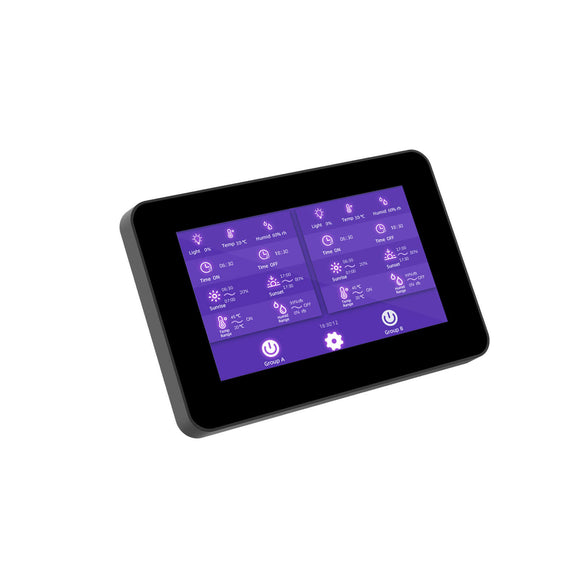

HBC-002 Smart LED Grow Light Controller - RJ14 Compatible, Adapts to RJ45, RJ11, & RJ12 Ports for Universal Use

$299.00

Free Shipping is available for all orders within Continental US and Europe.

Available Now!

The estimated time of delivery: 1 week

Commercial / Bulk Discounts Available! Email us TODAY! More info here.

Free shipping
Quality guarantee 40911917 8d2f 4f4b b04b 4001aee9b375
Smart control
Best price

HBC-002 LED grow light controller is compatible with most grow lights on the market with an RJ14 port. If your grow fixtures have RJ45, RJ11, or RJ12 ports, don't worry! We also provide an adapter that allows the controller to work seamlessly with those lights.

Features:

  • Intuitive touchscreen interface for simple operation
  • Dual-channel control to manage two light groups simultaneously
  • Customizable sunrise and sunset settings to mimic natural light cycles
  • Built-in temperature and humidity alarm for optimal growing conditions
  • Bluetooth connectivity to control the system remotely via a smartphone app

Specifications:

Input Voltage: DC12V
Power Adapter: Input AC100-277V,50/60Hz, Output DC12V
Dimming Type: 0-10V
Controller Dimension: 201*103*39mm
Operating Temperature: 20~45C
Operating Humidity: <95%(No Condensation)
Storage Temperature: 20~85C

Accessories:

cultiuana_grow_lights_controller_accessories



1x Power Adapter with 1.9m cable

2x Dimming Cable 1.5m

2x Humidity Sensor1.45m



Connecting with multiple fixtures:

how to connect cultiuana led grow lights to the controller

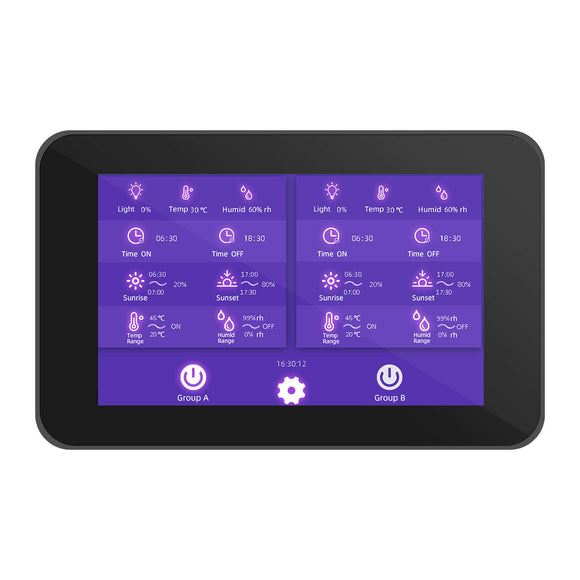

Touchscreen
grow light controller touchscreen

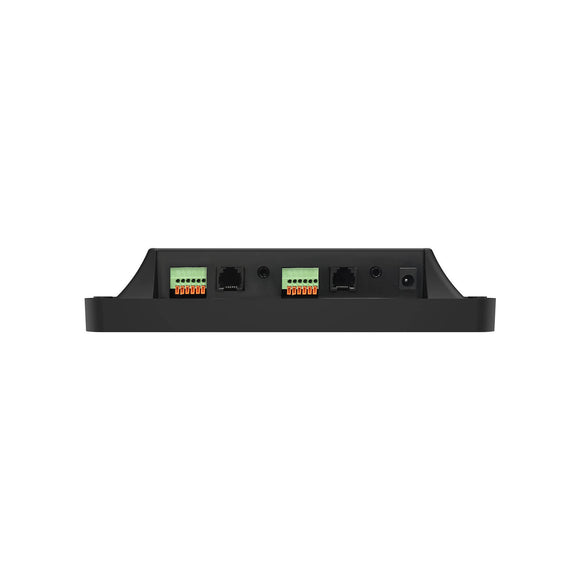

Interfaces
grow light controller interfaces
Select the group button before proceeding
grow light controller group buttons
Dimming Setting

Tap the bulb icon to enter the dimming setting.
Slide the block to adjust the dimming ratio.
Tap OK to save the setting.
grow light controller dimming settings
Time On and Time Off
Tap the Time ON/Time OFF to set the lighting fixture turn-on/turn-off time.
Slide the number up and down to set the lighting fixture turn-on/turn-off time.
Tick the little blank boxto activate the sunrise mode, or click off to turn off the sunrise mode.
Tap OK to save the settings.
grow light controller time on and off feature
Sunrise and Sunset Mode

Sunrise and Sunset Mode allow users to set the turn-on/turn-off process of the lighting fixture in stages as sunrise and sunset. Max. 3 dimming stages, each stage could last 1-60 minutes.

Tap the Sunrise/Sunset to set the sunrise/sunset mode.
Set the corresponding dimming ratio for each stage by sliding the block.
Tick the little blank box to activate the sunrise mode, or click off to turn off the sunrise mode.
Tap OK to save the settings.
grow light controller sunset and sunrise mode
Temperature Settings

Temperature Settings allow to preset a temperature range. When the current ambient temperature is not within the set temperature range, the controller will sound an alarm and pop up an alarm window.

Tap Temp Range icon to preset the acceptable temperature range.
Tap the number to enter the desired temperature value.
Tap Enter to save the value.
Tick the little blank box to activate the temperature settings or click off to turn off the temperature settings.
Tap OK to save the settings.
grow light controller temperature settings
Humidity Settings

Humidity Settings allows you to preset a humidity range. When the current ambient humidity is not within the set temperature range, the controller will sound an alarm and pop up an alarm window.

Tap the Humid range icon to preset the acceptable temperature range.
Tap the number to enter the desired temperature value.
Tap Enter to save the value.
Click the little blank box to activate the temperature settings, or click off to turn off the temperature settings.
Tap OK to save the settings.
grow light controller humidity settings
