Take Total Control of Your Grow Tent or Greenhouse
Achieving maximum yields requires more than just plug-and-play timers. Light intensity, spectrum balance, and climate conditions must work in harmony.

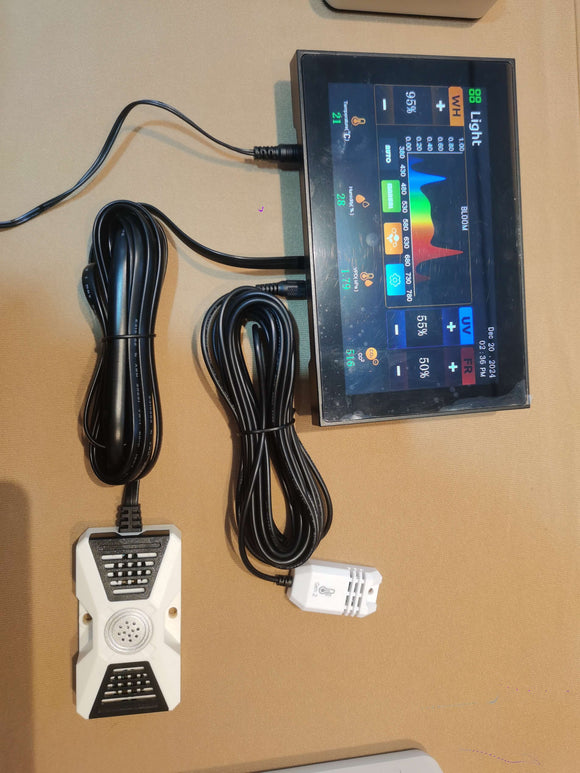

The Smart Controller serves as the ultimate command center for your indoor lighting ecosystem. Designed to bridge performance and simplicity, it provides complete authority over light spectrums, timing schedules, and environmental health—all from one sleek, 7-inch touchscreen panel.
Core Specifications & Features
Multi-Channel Spectrum Tuning: Tailor specific wavelengths (UV 400nm, Blue 451nm, Green 518nm, Orange 600nm, Red 660nm, Far-Red 730nm) to stimulate root development, vegetative growth, or flower density.
Automated Schedule Modes: Choose between Auto and Manual modes to execute custom photoperiods, light level adjustments, and sunrise/sunset dimming curves.
Climate & VPD Logging: View environmental fluctuations on clean graphical line charts (hourly/daily/monthly views) to keep your grow room within ideal VPD ranges.
Universal Connectivity: Integrated 0-10V and dual RS485 ports ensure seamless compatibility with most dimmable commercial LED grow lights.
Passcode Protection: Lock configuration parameters with an 8-digit project code to prevent accidental button presses or unauthorized setting adjustments.
Key Features:
Full-Spectrum Tuning for Every Growth Stage
Effortlessly switch and fine-tune spectral output for GROW (Vegetative) and BLOOM (Flowering) phases. Customize individual channel intensity—including UV and Far-Red (FR)—to maximize photosynthetic efficiency and increase crop yields.
Gradual Sunrise & Sunset Simulation
Eliminate light shock caused by sudden power shifts! The automated ramp-up and ramp-down timer gradually transitions your lighting, mimicking natural solar rhythms to protect plants from environmental stress.
Real-Time Temperature, Humidity & VPD Data Tracking
Equipped with a high-precision climate sensor, this controller measures ambient temperature (C°/F°) and relative humidity while calculating real-time VPD (Vapor Pressure Deficit). Monitor historical trends via daily and monthly graph logs to maintain optimal plant transpiration.
High-Temperature Auto-Dim & Emergency Shutdown
Keep your grow tents and crops safe from overheating. Set custom heat thresholds—when temperatures exceed safe limits, the system automatically dims or shuts off the lights and displays a prominent visual safety warning.

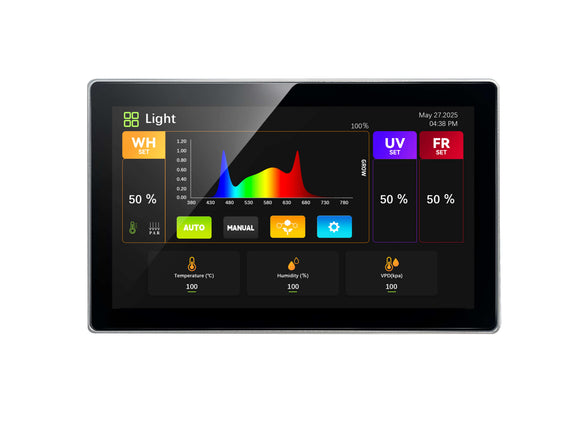

Intuitive 7-Inch Color Touchscreen with Scene Presets
Manage all parameters using a clear, user-friendly interface. Save custom lighting profiles into Scene Modes for one-tap recall, and easily connect to major LED fixtures via standard 0-10V and RS485 ports.
Package Includes:
1 × Smart Master Controller
1 × Temperature & Humidity Sensor Probe
1 × DC 12V Power Supply Adapter
1 × Network/Signal Cable
1 × Mounting & Installation Kit
1 × User Instruction Manual
Q: Will this controller work with my existing LED grow light?
A: Yes! As long as the positive (+) and negative (-) polarity of your light's 0-10V dimming port matches the positive and negative polarity of this controller's 0-10V interface, it will be fully compatible with your grow light.
